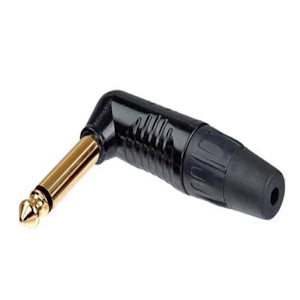

REAN RP2RC-B Right Angle gold/black

A mono 1/4" right-angle plug, with black plated housing and gold-plated contacts

REAN RP2RC-B Specifications:

• Electrical:
  • Contact rated current: depends on mating connector mΩ
  • Contact resistance depends on mating connector mΩ
  • Dielectric strength: 1 kV dc
  • Insulation resistance: > 1.5 GΩ
• Mechanical:
  • Lifetime: > 1000 mating cycles
  • Cable O.D.: 4 - 7 mm
  • Wire size: 1.0 mm²
  • Wire size: 18 AWG
  • Wiring: Solder contacts
• Material:
  • Boot: PA6+30% GF
  • Contact: Brass ( CuZn39Pb3)
  • Contact plating: Nickel / Au
  • Shell: Zinc alloy
  • Shell plating: Nickel / Black
  • Strain relief: POM
• Environmental:
  • Temperature range: -20 °C to +70 °C
  • Flammability: UL 94 HB
  • Solderability: complies with IEC68-2-20
