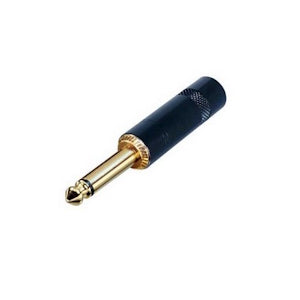

Rean NYS224BG 1/4 Inch 2-Pole Black and Gold Connector

The Rean NYS224BG is a 2-pole 1/4" plug with a black plated long turned brass handle with no rivet and gold-plated contacts.

Specifications:

• Electrical
• Contact resistance < 10 m Ohm
• Dielectric strength 0,5 kVdc
• Rated current per contact depends on mated connector A

  Mechanical
• Cable O.D. < 6 mm
• Wire size 24 AWG

  Material
• Contact plating 0.2 Ým Au
• Contacts Brass (CuZn39Pb3)
• Insert PA 66 30 % GR insulation board
• Shell CuZn39Pb3 Black

  Environmental
• Solderability Complies with IEC 68-2-20
• Temperature Range: -4°F - 158°F (-20°C to 70°C)
