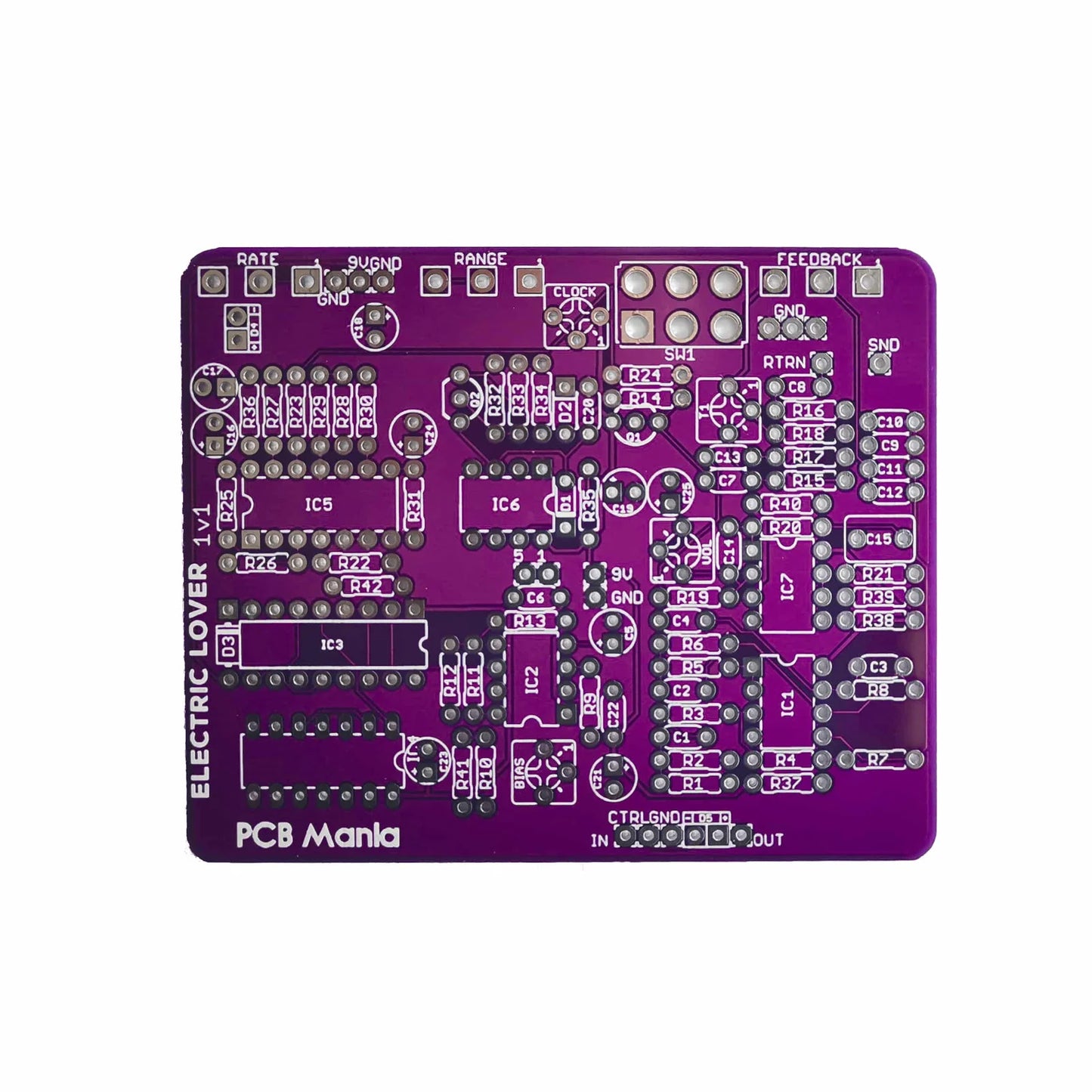

Electric Lover Flanger

Based on EHX Electric Mistress, adapted for the right functionality at 9v. It offers very warm and rich flanging while maintaining low noise operation and flexibility in its controls.

Introduction

This pedal features the following additions to the original circuit:

• A buffered clock signal to the BBD
• FX loop for through-zero flanging
• Output gain stage to match or exceed the bypass volume.7

This board only uses the MN300 - BBD IC and can be purchased here.

MN3007 - BBD IC

Controls

• Range
• Feedback
• Rate

What's in the bag.

• PCB
• 3PDT
