Benzin EQ - Equalizer
Benzin EQ - Equalizer
No se pudo cargar la disponibilidad de retiro
Based on the tone control of the Diezel VH4, this will make tweakholics, and high fans fall in love as equal!
At first, it might look pretty similar to the Amp Tone stack + Gain recovery, as the first section looks pretty similar. Both start with the 3 band Amp tone stack and the Gain recovery stage. However, the first difference is the Presence control, located after the gain recovery stage and bounded with the Deep Control. This design also includes the possibility of having two simultaneous outputs as the Active EQ, featuring the same type of power output and tame output.
Important! You should be able to read schematics to fully understand how and where to add these EQs in the best possible way.
Controls
- Bass
- Deep
- Mid
- Pres
- Tremble
- Vol
What's in the Bag:

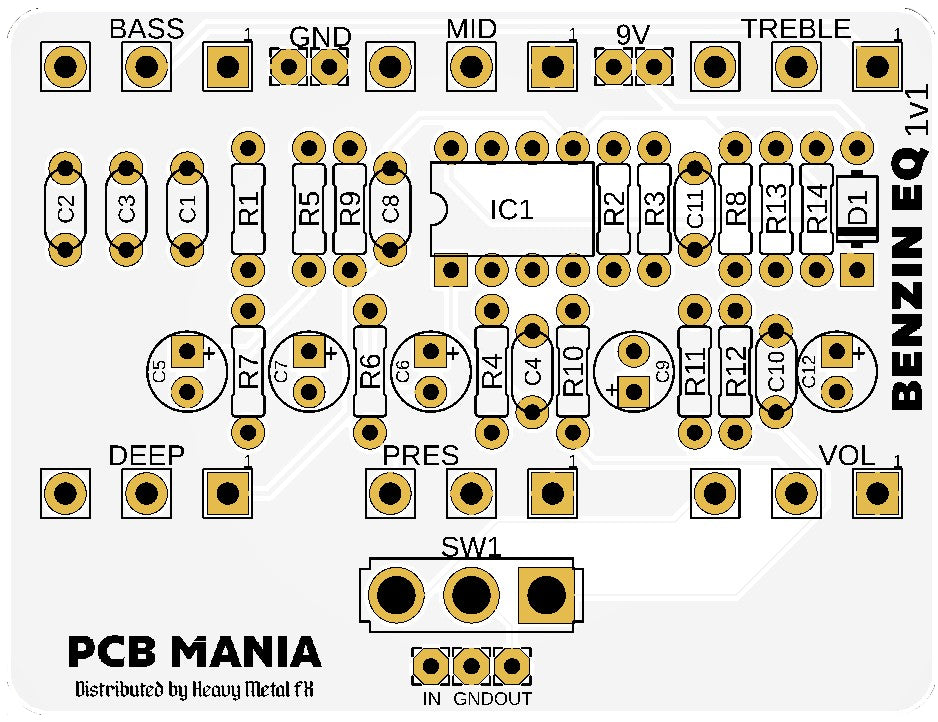

- Benzin EQ PCB
- 3PDT Board
Estimated Delivery : United States 1-7Days
10 en existencias
Share

- 5 stars: 2 (100%)
- 4 stars: 0 (0%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)
This is a GREAT sounding EQ pedal. The build is very straightforward and easy, there aren't a ton of parts and the PCB is very clean and laid out nicely. This one doesn't come with an LED, but there is an extra 9V pad at the top, so I was able to get and LED ran in there, just took a bit of hookup wire, but it works.
I really cant express enough how powerful this eq is, its loud and bright and full, and you can shape your tone any way you would like or need, or even just use it to make small adjustments for a non-ideal practice or gig space. This is really a steal for what it is.
I did have a couple of questions about the routing of the input jacks and DC jack on this one, but the company was very responsive and helpful through email support and helped me get this up and running in no time!
I can’t say enough good things about my experience with this company. Super helpful and very fast shipping. Will do more business for sure
